SOGo 6 Managers

Managers are used to talk with external services: databases, LDAP server, IMAP server…​

They use a module, from Python Standard Library or external, to communicate with these services. Managers must catch exceptions from these libraries to let SOGo 6 decide what to do.

Managers cannot import files from API, Interface, Modules. They can import from utils.

Managers inherit from an abstract parent class, that defines atomic methods necessary.

A child manager can inherit from several parents if needed. In that case It should make sure that methods are either exclusive to one parent or compatible with both.

E.g. sql managers are both used for SOGo 6’s database and SOGo 6’s User Source.

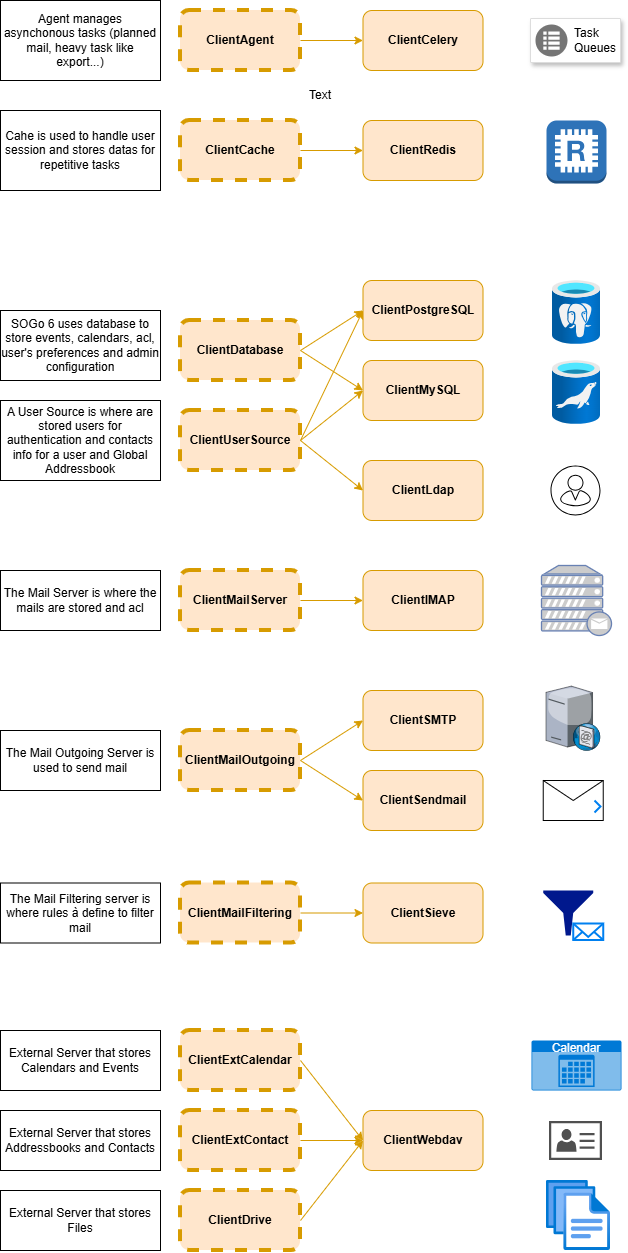

SOGo 6 Manager

List of Managers

Client Mail server

Abstract Parent: ClientMailServer

Methods that must be implemented within children:

  • connect: Open connection with the mail server.

  • login: Authenticate the user to the mail server.

  • def logout: logout the user.

  • list_folders: List all mail folders of the user.

  • get_one_folder: Get one mail folder of the user

  • create_folder: Create one mail folder for the user

  • delete_folder: Delete one mail folder of the user

  • purge_folder: Remove/Delete all mails in a folder older than a given date

  • expunge_folder: (IMAP notion) Remove all mails in a folder flagged as deleted

  • get_acl: (Access Control List) Get the different rights given to users for a mail folder

  • set_acl: (Access Control List) Set rights to one user for a mail folder

  • delete_acl: (Access Control List) Remove all rights for a user for a mail folder

  • fetch_all_mails_with_content: Fetch all mails in a folder with content, heavy load

  • fetch_all_mails_without_content: Fetch all mails in a folder without content (headers, basic info…​), light load

  • fetch_mail: Fetch one mail in a folder

  • fetch_mail_raw: Fetch raw file of a mail (eml)

  • delete_mails_by_uid: Delete several mails by given their uid

  • add_flags_to_mail: Add flag to a mail

  • remove_flags_to_mail: Remove flag to a mail

  • copy_mail_to_mailbox: Copy a mail from one folder to another

Client IMAP

This manager handles imap protocol communication

It uses library imaplib from Python Standard Library

Client Jmap

NOT IMPLEMENTED, just to give an example of another manager

Client Mail Outgoing

Abstract Parent: TODO

Methods that must be implemented within children:

  • connect: Open connection with the outgoing mail server.

  • login: Authenticate the user to the outgoing mail server.

  • send_mail: Send a mail

Client SMTP

This manager handles smtp protocol communication

It uses library smtplib from Python Standard Library

Client Sendmail (SOGo 5 Legacy ?)

This manager handles the system command sendmail

It uses library subprocess from Python Standard Library

Client Mail Filtering

Abstract Parent: TODO

Methods that must be implemented within children:

  • connect: Open connection with the filtering mail server

  • login: Authenticate the user to the filtering mail server.

  • get_filter: Get the current filtering rules

  • set_filter: Set the filtering rules

  • delete_filter: delete all filtering rules

Client Sieve

The manager handles manage-sieve communication

It uses library sievelib

Client SOGo 6 database

SOGo 6 has a light abstraction that defines database structure. Even if it uses sql-expressions like tables and columns, it could also be converted into no-sql databases (E.g. for mongo: tables become collections and columns become the root key of the json)

In the following, table and columns are in SOGo 6 abstraction layer sense, not sql sense.

Abstract Parent: ClientSql (Should we add an abstraction sql/No-sql?)

Methods that must be implemented within children:

  • connect: connect and authenticate to the database

  • get_table_info: Get info about a table (For SOGo 6 to check integrity and current state)

  • create_table: Create a table

  • create_several_table: Create several tables at once

  • select_from_table: get given columns values from a table with a given condition

  • select_from_several_table: get given columns values from several table with given conditions

  • count_row_in_table: get number of rows/documents from a table given a condition

  • insert_in_table: Add data in a table that does not exist

  • update_in_table: Update data in a table that already exists given a condition

  • delete_row_in_table: delete data in a table given a condition

  • close: close the connection

Each manager must convert in both ways SOGo 6 table/columns notion

Client PostgreSQL

This manager handles postgresql communication

It uses library psycopg

Psycopg is actually Psycopg 3, not Psycopg 2.

Client MariaDB

This manager handles mariadb communication

It uses library mysql-connector-python

Client User Source

User Source is where users of SOGo 6 and more are defined. A user source can be used for authentication and/or for global AddressBooks.

More than users, resources (rooms, items) and groups (lists of users/resources) can also be defined in User Source.

User Source can be an LDAP server or a database. In case of database, it can be the same as the database needed for SOGo 6 for internal storage and operations. But it’s important to differentiate the User Source from SOGo 6 database.

Abstract Parent: TODO

Methods that must be implemented within children:

  • connect: connect to the user source service

  • login: authenticate to the user source server

  • check_user_creds: Check the credentials of a user

  • update_user_creds: Update credentials of a user

  • get_user_info: Get contact info of a user/resource/groups by uid

  • search_user: search user/resource/groups with search criteria

  • get_all_users: get all users from this user source

Client LDAP

This manager handles LDAP communication

It uses library python-ldap (Need additional C library to install)

Client PostgreSQL

This manager handles postgresql communication

It uses library psycopg

Psycopg is actually Psycopg 3, not Psycopg 2.

Client MariaDB

This manager handles mariadb communication

It uses library mysql-connector-python

Client Cache

For now there is no abstract layer, only Redis

Client Redis

It handles Redis communication

It uses redis-py

Client Agent

The agent is the external service to handle asynchronous tasks and queueing. Only Celery is planned.

Client Celery

Celery is a Distributed Task Queue[https://docs.celeryq.dev/en/main/index.html] in Python. It gives a library for both the server and the client.

Client External Calendar

The user can import calendar from other external services

Methods that must be implemented within children:

  • connect: Connect to the external services

  • login: Authenticate to the external services

  • list_all_calendars: list all the calendars of the user

  • set_calendar_acl: manage ACL calendar

  • get_all_events: get all events for a calendar. All is not necessarily all but in a time period

  • get_one_event: get one specific event

  • search_for_events: query to search an event according to criteria

  • create_an_event: explicit

  • update_an_event: explicit

  • delete_an_event: explicit

  • download_an_event: download a raw event file.

Client Webdav

It handles webdav communication and its extensions (caldav, cardav)

There is no Python client, except not maintained one, however a combination of requests and an xml parser library will do the work.

Client External Addressbook

Abstract Parent: TODO

Methods that must be implemented within children:

  • connect: Connect to the external services

  • login: Authenticate to the external services

  • list_all_addressbooks: list all the calendars of the user

  • set_addressbook_acl: manage ACL Addressbook

  • get_all_contacts: get all events for a calendar. All is not necessarily all but in a time period

  • get_one_contact: get one specific event

  • search_for_contact: query to search an event according to criteria

  • create_a_contact: explicit

  • update_a_contact: explicit

  • delete_a_contact: explicit

  • download_a_contact: download a raw contact file.

This manager does not implement: * Address Book deletion

Client Webdav

It handles webdav communication and its extensions (caldav, cardav)

There is no Python client, except not maintained one, however a combination of requests and an xml parser library will do the work.

Client Drive

Abstract Parent: TODO

Methods that must be implemented within children:

  • connect: Connect to the external services

  • login: Authenticate to the external services

  • list_contents: list all the folders and file from a path

  • set_content_acl: manage ACL folder/files

  • create_folder: get all events for a calendar. All is not necessarily all but in a time period

  • delete_folder: get all events for a calendar. All is not necessarily all but in a time period

  • download_one_file: get one specific event

  • upload_one_file: query to search an event according to criteria

  • delete_one_file: explicit

Client Webdav

It handles webdav communication and its extensions (caldav, cardav)

There is no Python client, except not maintained one, however a combination of requests and an xml parser library will do the work.
